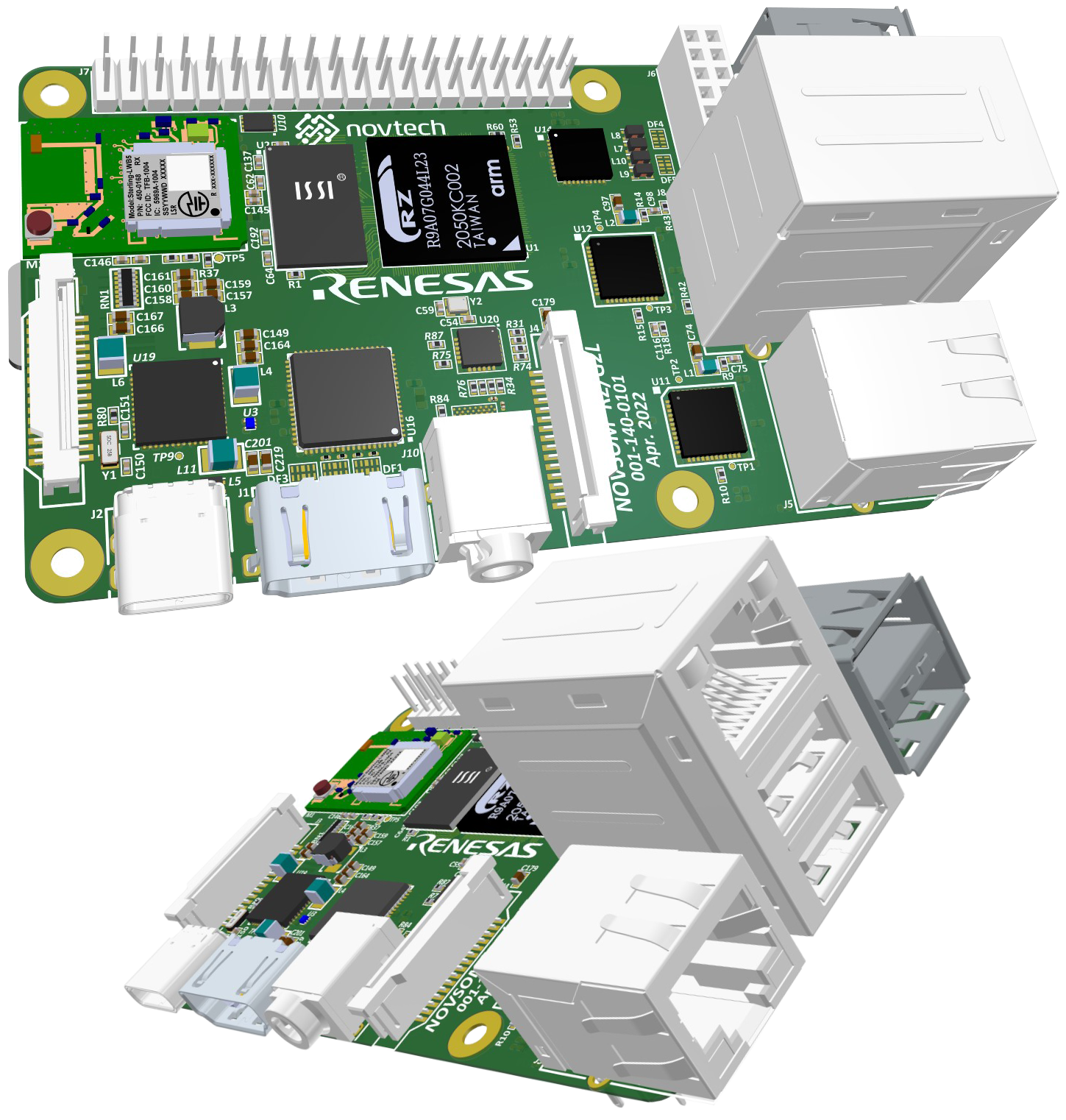

NOVSBC™ RZ/RPL

A Single Board Computer (SBC) based on Renesas RZ/G2L and RZ/V2L ARM® Dual-Core A55 System on a Chip (SoC) in a Raspberry Pi 3+ Form Factor

Board Specifications

  • SoC
    • Renesas RZ/G2L
      • CPU: Cortex A55 (1x/2x; Up to 1.2GHz per core) OR Cortex M33 (1x; Up to 200MHz)
      • GPU: ARM Mali-G31
    • Renesas RZ/V2L
      • CPU: Cortex A55 (1x/2x; Up to 1.2GHz per core) OR Cortex M33 (1x; Up to 200MHz)
      • GPU: ARM Mali-G31; AI Accelerator: DRP-AI
  • Storage
    • NOR-SPI (Up to 1Gb)
    • 1x MicroSD slot
  • Communication
    • 2x RJ-45 1G Ethernet (10/100/1000M); 802.11 a/b/g/n
    • Bluetooth 4.0
    • 4x USB 2.0 Host
    • 1x USB 2.0 Device via USB-C
  • Memory
    • 4Gb (Up to 16Gb) DDR4L
  • Multimedia
    • Video
      • HDMI Out 1080p 60Hz
      • 2x Mipi DSI Lanes
      • 2x Mipi CSI Lanes
    • Audio
      • HDMI Audio Out
      • Headset In/Out
      • Bluetooth 4.0 Audio
  • Miscellaneous
    • GPIO 40-pin Header (Raspberry-Pi pinout)
    • PMode 6A Connector
    • 8 Channel ADC
    • QSPI Interface Routed to a Connector
  • Power
    • +5.0V via USB-C
  • Dimensions
    • 90mm x 56mm (3.5” x 2.2”)

Support Resources

Ordering Information

Additional Resources

Register your NovTech product

*Description*

  • Footprint/Connector matching Raspberry Pi 3 Model B+
  • Dual 1G Ethernet ports
    • One RJ45
    • One 1Wire Automotive
  • Up to 2GB DDR
  • mSD/eMMC and QSPI
  • Four USB 2.0 A Ports
  • MIPI CSI-2 4Lane
  • MIPI DSI 4Lane/HDMI
  • 3D GPU/H.264 Enc/Dec 1080p @ 30fps
  • Audio In/Out
  • 802.11/BT
  • LTE (via M.2-B)
  • IO Header
    • CAN
    • I2C
    • UARTs
    • SPI
    • GPIOs
